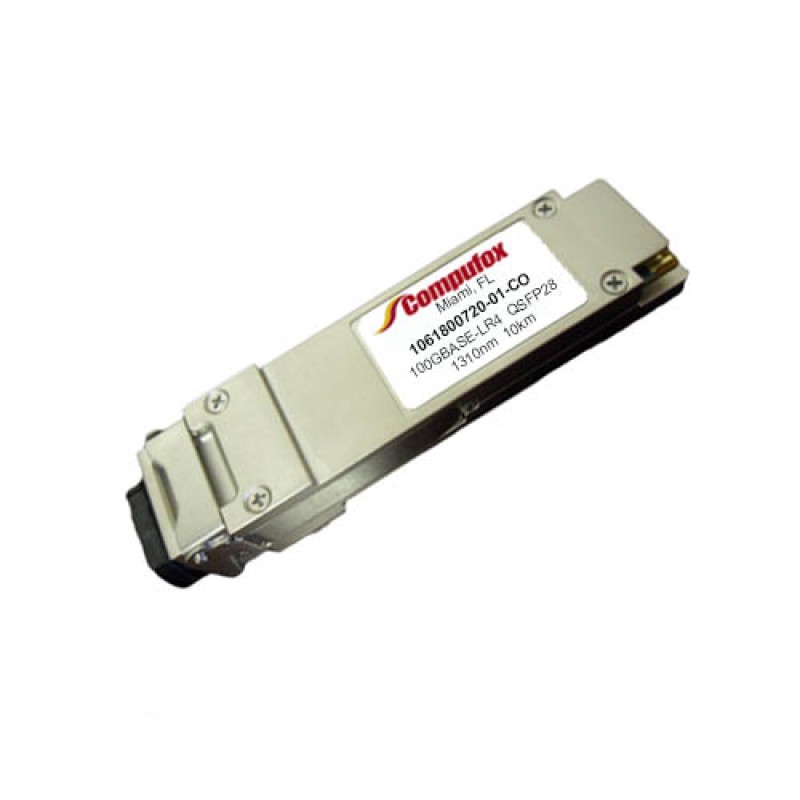

ADVA 1061800720-01 Compatible 100GBase-LR4 QSFP28 Transceiver (SMF, 1310nm, 10km, LC, DOM)

$365.00

  • Product Code: 1061800720-01-CO
  • Availability: In Stock

Available Options

ADVA 1061800720-01 Compatible 100GBase-LR4 QSFP28 Optical Transceiver Module (SMF, 1310nm, 10km, LC, DOM).


Specifications

Form Factor

QSFP28

Data Rate

100Gbps

Wavelength *

1310nm

Distance

10km

Connector

Duplex LC

Media

SMF

Transmitter Type

4 x LAN WDM EML

Receiver Type

PIN

TX Power

-4.3~4.5dBm

Minimum Receiver Power

-10.6dBm

Powerbudget

6.3dB

Receiver Overload

4.5dBm

Power Consumption

≤3.5W

Extinction Ratio

>4dB

DDM/DOM

Yes

Bit Error Ratio (BER)

1E-12

Commercial Temperature Range

0 to 70°C (32 to 158°F)

Protocols

IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636

* Lane Center Wavelengths Range:

L0 1295.56nm (1294.53-1296.59nm)

L1 1300.05nm (1299.02-1301.09nm)

L2 1304.58nm (1303.54-1305.63nm)

L3 1309.14nm (1308.09-1310.09nm)
