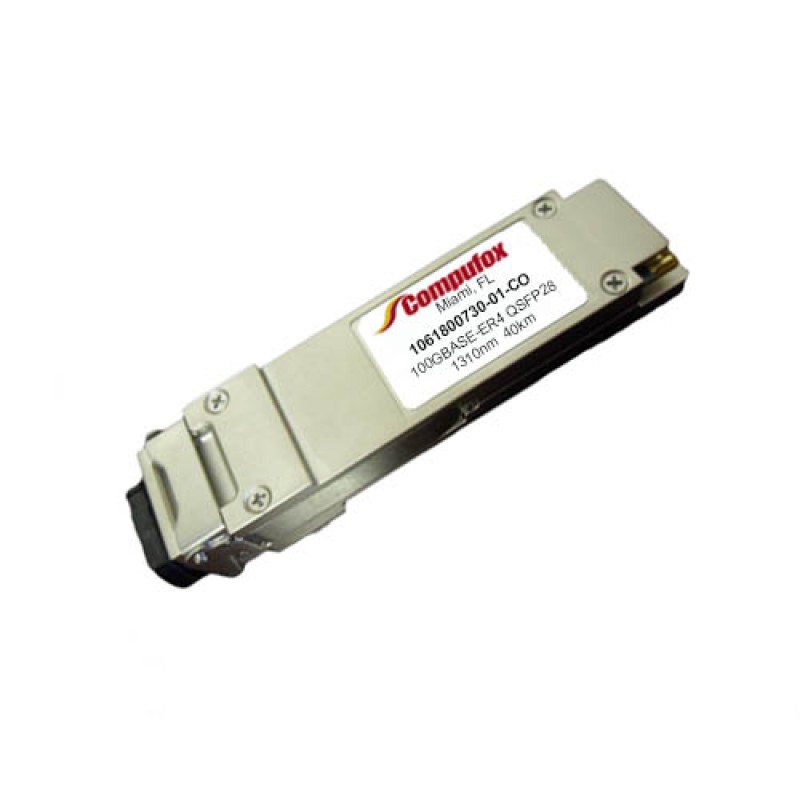

ADVA 1061800730-01 Compatible 100GBase-ER4 QSFP28 Transceiver (SMF, 1310nm, 40km, LC, DOM)

$1,495.00

  • Product Code: 1061800730-01-CO
  • Availability: In Stock

Available Options

ADVA 1061800730-01 Compatible 100GBase-ER4 QSFP28 Optical Transceiver Module (SMF, 1310nm, 40km, LC, DOM).

Specifications

Form Factor

QSFP28

Data Rate

100Gbps

Wavelength *

1310nm

Distance *

40km

Connector

Duplex LC

Media

SMF

Transmitter Type

4x EML

Receiver Type

APD

TX Power

-2.9~4.5dBm

Minimum Receiver Power

-20.9dBm

Powerbudget

18dB

Receiver Overload

-4.9dBm

Power Consumption

≤4.5W

Extinction Ratio

>4dB

DDM/DOM

Yes

Bit Error Ratio (BER)

1E-12

Commercial Temperature Range

0 to 70°C (32 to 158°F)

Protocols

QSFP28 MSA Compliant


*    Requires the use of FEC on the host platform. Without FEC, the reach is 30km.

*    Lane Center Wavelengths Range:

      L0 1295.56nm (1294.53-1296.59nm)

      L1 1300.05nm (1299.02-1301.09nm)

      L2 1304.58nm (1303.54-1305.63nm)

      L3 1309.14nm (1308.09-1310.09nm)
