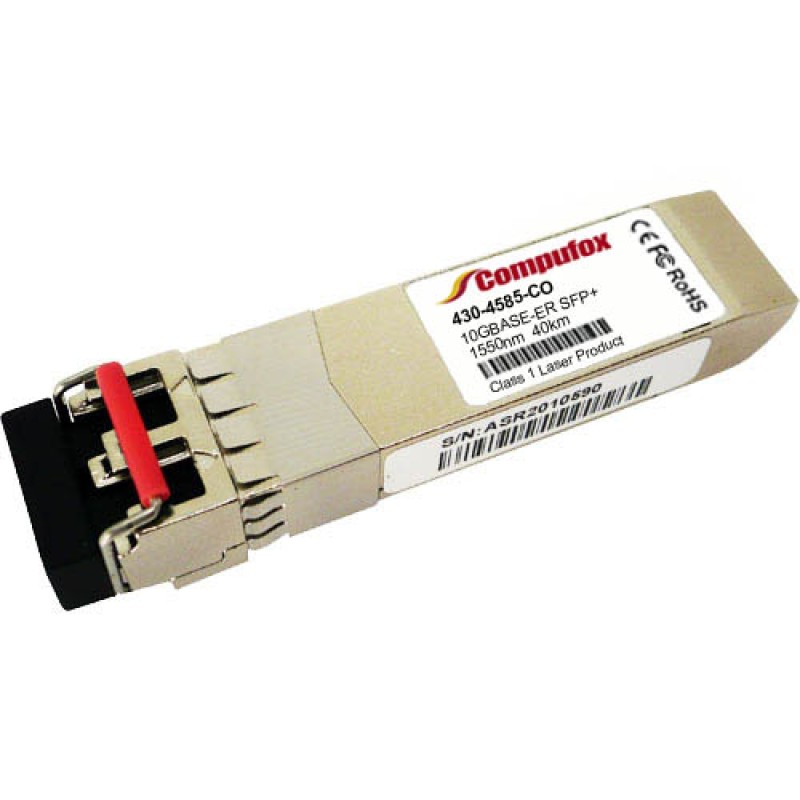

Dell 430-4585 Compatible 10GBASE-ER SFP+ Transceiver (SMF, 1550nm, 40km, LC, DOM)

$95.00

  • Product Code: 430-4585-CO
  • Availability: In Stock

Available Options

Dell 430-4585 Compatible 10GBASE-ER SFP+ Optical Transceiver Module (SMF, 1550nm, 40km, LC, DOM).


Specifications

Form Factor

SFP+

Data Rate

10Gbps

Wavelength

1550nm

Max Cable Distance

40km

Connector

Duplex LC

Optical Components

EML 1550nm

Media

SMF

DOM Support

Yes

TX Power

-1~4dBm

Receiver Sensitivity

< -16dBm

Commercial Temperature Range

0 to 70°C (32 to 158°F)

Protocols

SFP+ MSA Compliant, CPRI, eCPRI


Important: When the long reach transceiver is used in short distance transmission, please use the appropriate attenuator according to the table.

Distance

≤ 5km

≤ 10km

≤ 20km

Attenuator

7dB

5dB

3dB
