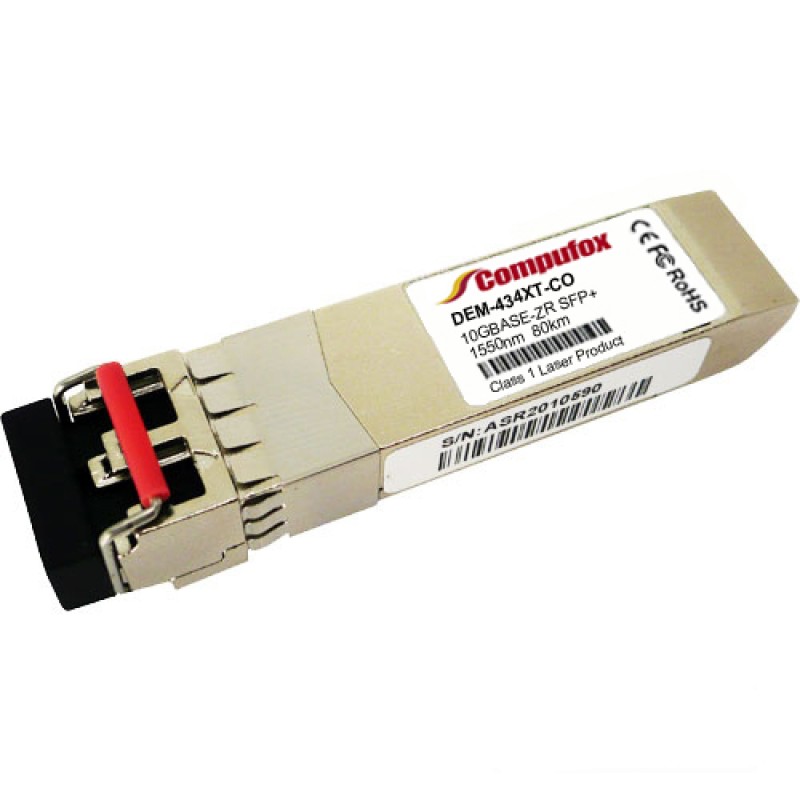

D-Link DEM-434XT Compatible 10GBASE-ZR SFP+ Transceiver (SMF, 1550nm, 80km, LC, DOM)

$195.00

  • Product Code: DEM-434XT-CO
  • Availability: In Stock

Available Options

D-Link DEM-434XT Compatible 10GBASE-ZR SFP+ Optical Transceiver Module (SMF, 1550nm, 80km, LC, DOM).


Specifications

Form Factor

SFP+

Data Rate

10Gbps

Wavelength

1550nm

Max Cable Distance

80km

Connector

Duplex LC

Optical Components

EML

Media

SMF

DOM Support

Yes

TX Power

0~5dBm

Receiver Sensitivity

<-23dBm

Commercial Temperature Range

0 to 70°C (32 to 158°F)

Protocols

SFP+ MSA Compliant, CPRI, eCPRI


Important: When the long reach transceiver is used in short distance transmission, please use the appropriate attenuator according to the table.

Distance

≤ 10km

≤ 30km

≤ 50km

Attenuator

12dB

10dB

5dB
