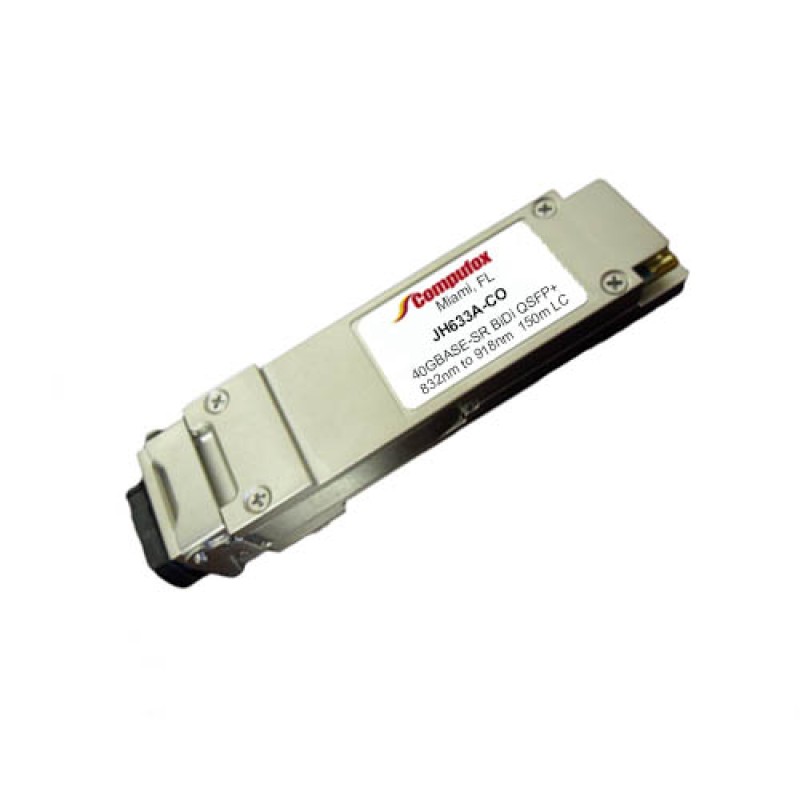

HPE JH633A Compatible 40GBASE-SR BiDi Duplex Transceiver (MMF, 832nm - 918nm, 150m, LC)

$245.00

  • Product Code: JH633A-CO
  • Availability: In Stock

Available Options

HPE JH633A Compatible 40GBASE-SR Bi-Directional Duplex Optical Transceiver Module (MMF, 832nm - 918nm, 150m, LC).


Specifications

Form Factor

QSFP+

Max Data Rate

40Gbps

Wavelength

832nm - 918nm

Max Cable Distance

150m@OM4

Connector

Duplex LC

Media

MMF

Transmitter Type

VCSEL 850/900nm

Receiver Type

PIN

TX Power

-4~5dBm

Receiver Sensitivity

<-6dBm

Powerbudget

6dB

Power Consumption

≤3.5W

Extinction Ratio

3.5dB

DDM/DOM

N/A

FEC Function

Supported

CDR

None

Commercial Temperature Range

0 to 70°C (32 to 158°F)

Protocols

40G Ethernet, IEEE802.3ba-2010, MSA Compliant
