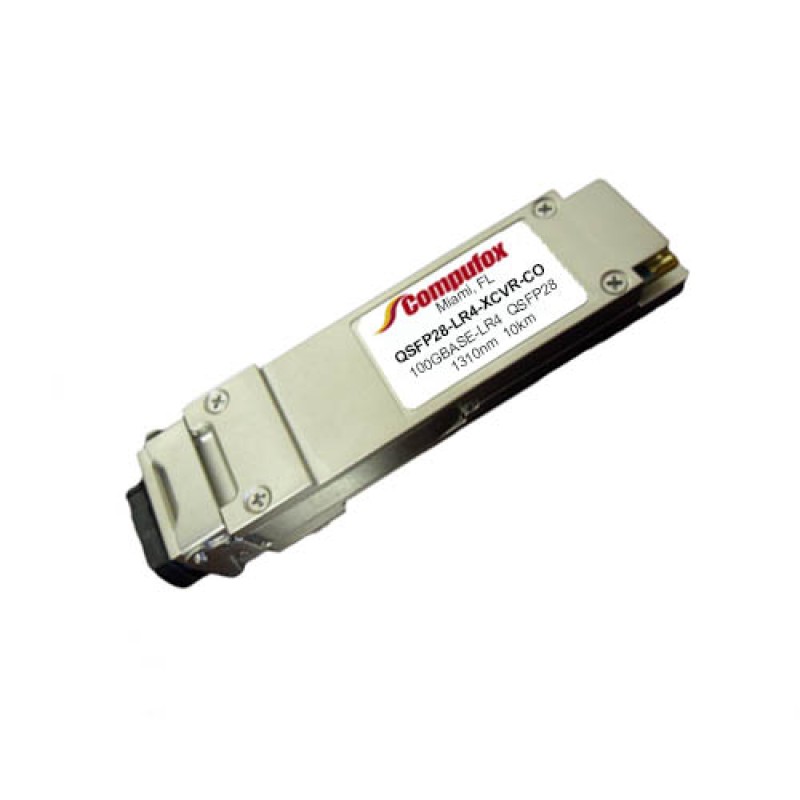

Ixia QSFP28-LR4-XCVR Compatible 100GBase-LR4 QSFP28 Transceiver (SMF, 1310nm, 10km, LC, DOM)
$365.00
- Product Code: QSFP28-LR4-XCVR-CO
- Availability: In Stock
Available Options
Ixia QSFP28-LR4-XCVR Compatible 100GBase-LR4 QSFP28 Optical Transceiver Module (SMF, 1310nm, 10km, LC, DOM).
Specifications
|
Form
Factor |
QSFP28 |
Data
Rate |
100Gbps |
|
Wavelength
* |
1310nm
|
Distance
|
10km |
|
Connector |
Duplex
LC |
Media |
SMF |
|
Transmitter
Type |
4 x
LAN WDM EML |
Receiver
Type |
PIN |
|
TX
Power |
-4.3~4.5dBm |
Minimum
Receiver Power |
-10.6dBm |
|
Powerbudget |
6.3dB |
Receiver
Overload |
4.5dBm |
|
Power
Consumption |
≤3.5W |
Extinction
Ratio |
>4dB |
|
DDM/DOM |
Yes |
Bit
Error Ratio (BER) |
1E-12 |
|
Commercial
Temperature Range |
0 to
70°C (32 to 158°F) |
Protocols |
IEEE
802.3ba 100GBASE-LR4, IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636 |
* Lane Center Wavelengths Range:
L0 1295.56nm (1294.53-1296.59nm)
L1 1300.05nm (1299.02-1301.09nm)
L2 1304.58nm (1303.54-1305.63nm)
L3 1309.14nm (1308.09-1310.09nm)
