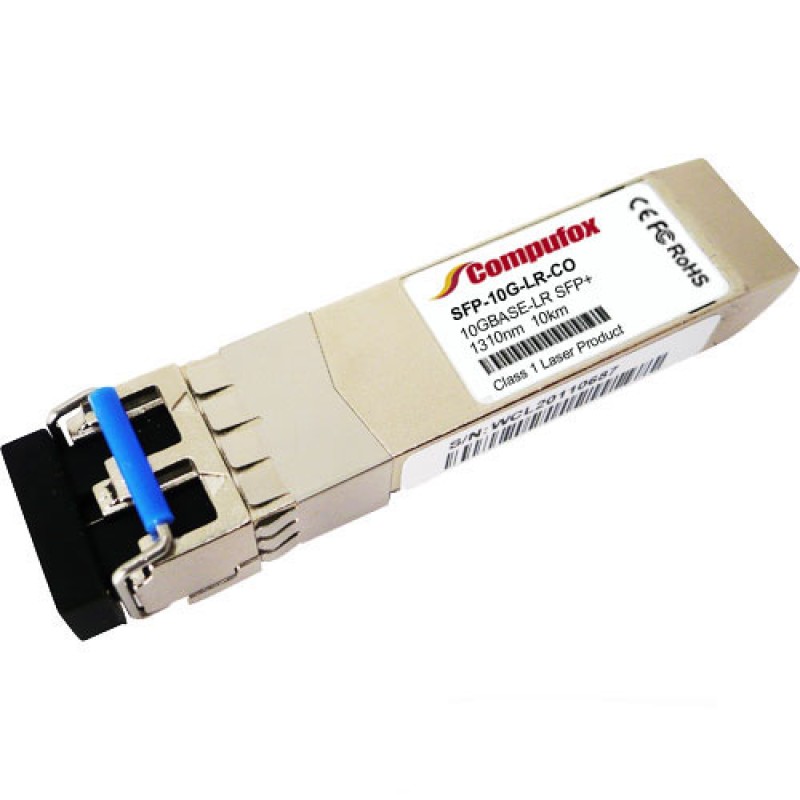

Alcatel-Lucent SFP-10G-LR Compatible 10GBASE-LR SFP+ Transceiver (SMF, 1310nm, 10km, LC, DOM)

$25.00

  • Product Code: SFP-10G-LR-AL-CO
  • Availability: In Stock

Available Options

Alcatel-Lucent SFP-10G-LR Compatible 10GBASE-LR SFP+ Optical Transceiver Module (SMF, 1310nm, 10km, LC, DOM).


Specifications

Form Factor

SFP+

Data Rate

10Gbps

Wavelength

1310nm

Max Cable Distance

10km

Connector

Duplex LC

Media

SMF

Transmitter Type

DFB

Receiver Type

PIN

TX Power

-8.2~0.5dBm

Receiver Sensitivity

<-14.4dBm

Powerbudget

6.2dB

Receiver Overload

0.5dBm

Power Consumption

≤1W

Extinction Ratio

>3.5dB

Commercial Temperature Range

0 to 70°C (32 to 158°F)

Protocols

IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI
