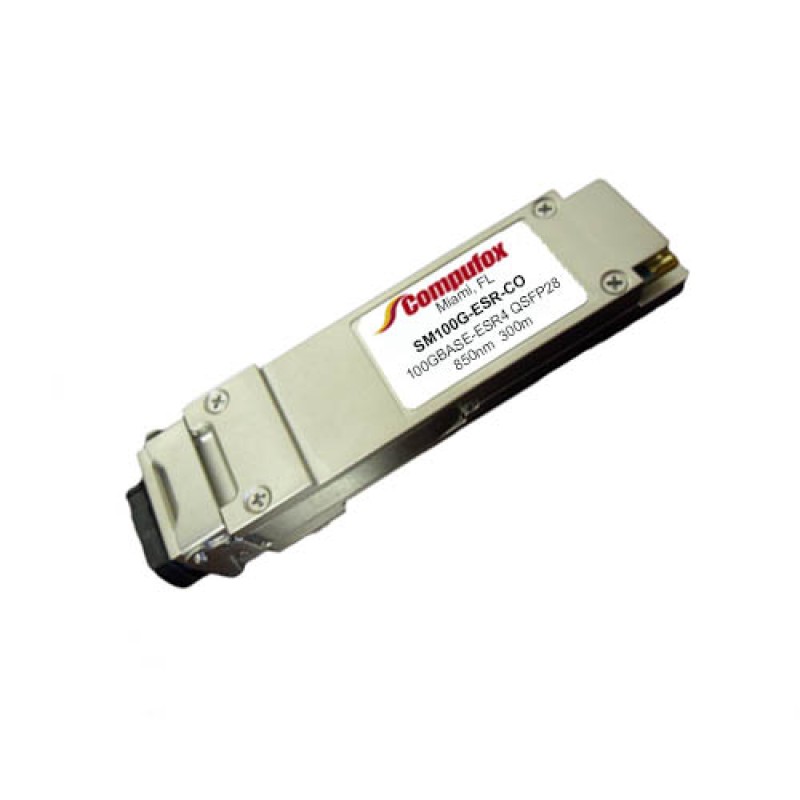

Chelsio SM100G-ESR Compatible 100GBase-ESR4 QSFP28 Transceiver (MMF, 850nm,300m, MPO, DOM)

$95.00

  • Product Code: SM100G-ESR-CO
  • Availability: In Stock

Available Options

Chelsio SM100G-ESR Compatible 100GBase-ESR4 QSFP28 Optical Transceiver Module (MMF, 850nm,300m, MPO, DOM).


Specifications

Form Factor

QSFP28

Data Rate

100Gbps

Wavelengths

850nm

Distance

200m@OM3/300m@OM4

Connector

MTP/MPO-12

Media

MMF

Transmitter Type

VCSEL

Receiver Type

PIN

TX Power

-8.4~2.4dBm

Minimum Receiver Power

-10.3dBm

Powerbudget

1.9dB

Receiver Overload

3.4dBm

Power Consumption

≤2.5W

Extinction Ratio

>2dB

DDM/DOM

Yes

Bit Error Ratio (BER)

1E-12

Commercial Temperature Range

0 to 70°C (32 to 158°F)

Protocols

IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636, SFF-8679
