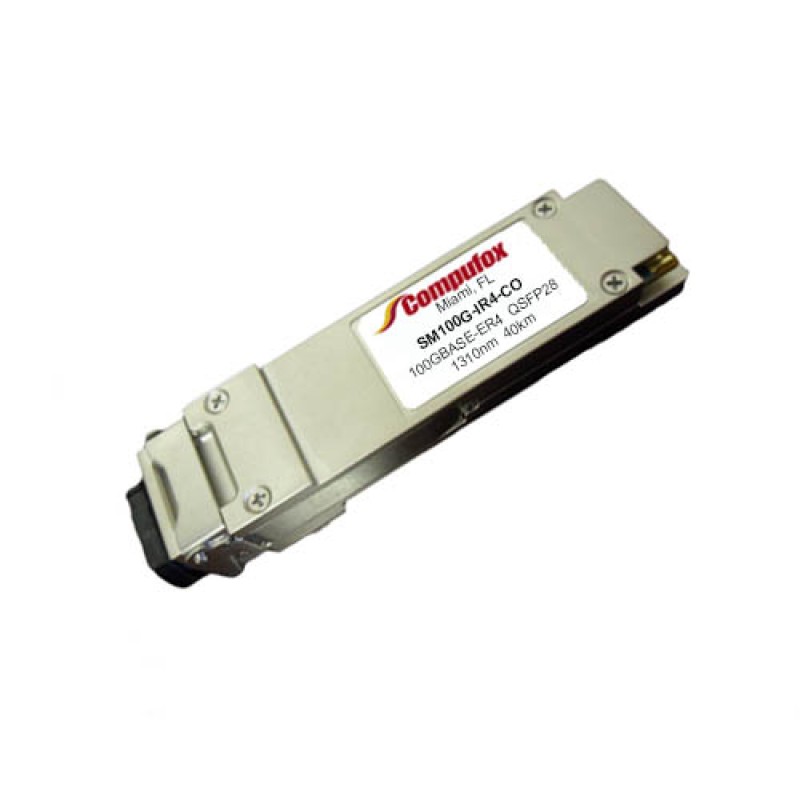

Chelsio SM100G-IR4 Compatible 100GBASE-CWDM4 QSFP28 Transceiver (SMF, 1310nm, 2km, LC, DOM)

$175.00

  • Product Code: SM100G-IR4-CO
  • Availability: In Stock

Available Options

Chelsio SM100G-IR4 Compatible 100GBASE-CWDM4 QSFP28 Optical Transceiver Module (SMF, 1271nm, 1291nm, 1311nm and 1331nm, 2km, LC, DOM).


Specifications

Form Factor

QSFP28

Data Rate

100Gbps

Wavelength

1270nm to 1330nm

Distance

2km

Connector

Duplex LC

Media

SMF

Transmitter Type

4 x CWDM DML (DFB)

Receiver Type

PIN

TX Power

-6.5~2.5dBm

Minimum Receiver Power

-11.5dBm

Powerbudget

5dB

Receiver Overload

2.5dBm

Power Consumption

≤3.5W

Extinction Ratio

>3.5dB

DDM/DOM

Yes

Bit Error Ratio (BER)

5E-5

Commercial Temperature Range

0 to 70°C (32 to 158°F)

Protocols

IEEE 802.3ba, IEEE 802.3bm, 100G CWDM4 MSA, QSFP28 MSA, SFF-8665, SFF-8636
