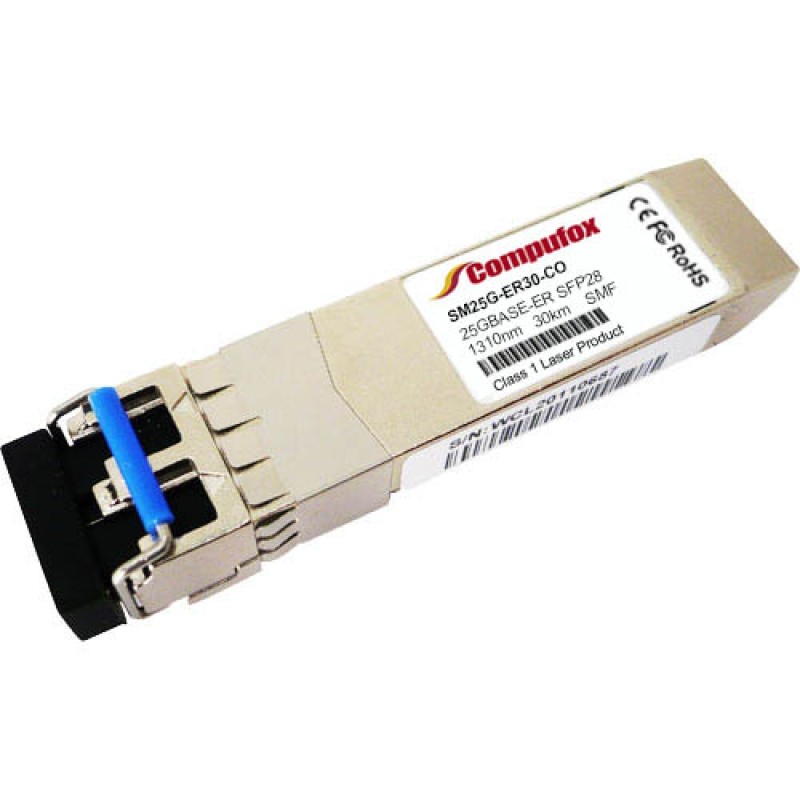

Chelsio SM25G-ER30 Compatible 25GBASE-ER SFP28 Transceiver (SMF, 1310nm, 30km, LC, DOM)

$195.00

  • Product Code: SM25G-ER30-CO
  • Availability: In Stock

Available Options

Chelsio SM25G-ER30 Compatible 25GBASE-ER SFP28 Optical Transceiver Module (SMF, 1310nm, 30km, LC, DOM).


Specifications

Form Factor

SFP28

Data Rate

25Gbps

Wavelength

1310nm

Max Cable Distance

30km

Connector

Duplex LC

Media

SMF

Transmitter Type

DML 1310nm

Receiver Type

APD

TX Power

0~6dBm

Receiver Sensitivity

<-19dBm

Powerbudget

19dB

Receiver Overload

-4dBm

Power Consumption

≤1.5W

Extinction Ratio

4dB

DDM

Support

Bit Error Ratio (BER)

1E-12

Commercial Temperature Range

0 to 70°C (32 to 158°F)

Protocols

MSA Compliant, CPRI, eCPRI
