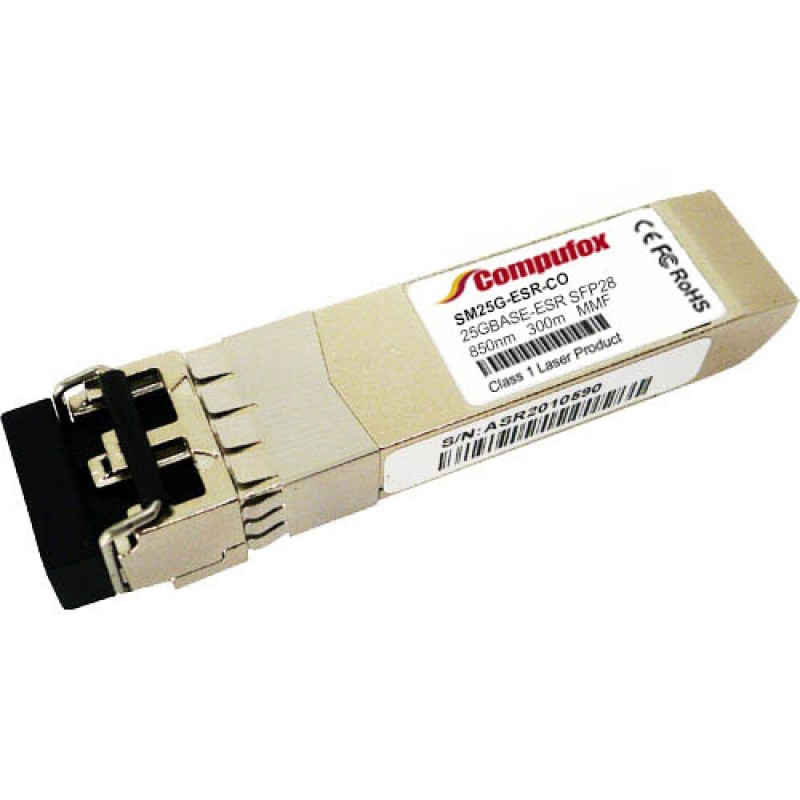

Chelsio SM25G-ESR Compatible 25GBASE-ESR SFP28 Transceiver (MMF, 850nm, 300m, LC, DOM)

$49.00

  • Product Code: SM25G-ESR-CO
  • Availability: In Stock

Available Options

Chelsio SM25G-ESR Compatible 25GBASE-ESR SFP28 Optical Transceiver Module (MMF, 850nm, 300m, LC, DOM).


Specifications

Form Factor

SFP28

Data Rate

25Gbps

Wavelength

850nm

Recommended Cable Distance

300-400m@OM4                                    200-300m@OM3

Connector

Duplex LC

Media

MMF

Transmitter Type

VCSEL

Receiver Type

PIN

TX Power

-6.4~2.4dBm

Receiver Sensitivity

-10.3dBm

Powerbudget

3.9dB

Receiver Overload

2.4dBm

Power Consumption

≤1W

Extinction Ratio

2dB

DDM

Support

Bit Error Ratio (BER)

1E-12

Commercial Temperature Range

0 to 70°C (32 to 158°F)

Protocols

SFP28 MSA Compliant, SFF-8472, SFF-8024, SFF-8431, SFF-8432
